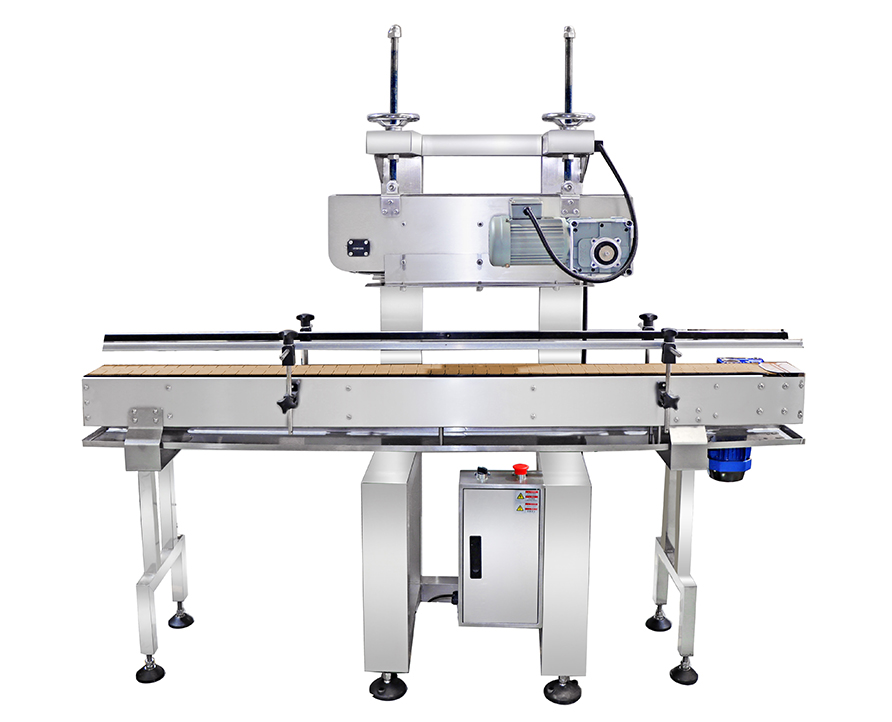

Tracked capping machine, Crawler type capping equipment
 | Tracked pressing cap capping machineCapping Speed : 40-60 cans/minute |
Machine Description:
The tracked capping machine is a continuous capping equipment. Bottles travel along the conveyor belt, and the caps are pressed and locked by the track. It can be directly connected to the filling and capping production line. The capping is completed simultaneously during the bottle transportation process, and it is suitable for batch compaction of various bottle caps such as plastic caps and tamper-evident caps.
Machine Feature:
1. Uninterrupted, continuous capping: Bottles pass through the equipment at a constant speed, completing the capping process without requiring stoppages or positioning, ensuring high efficiency across the entire production line.
2. Adjustable pressure for flexible clamping: The capping gap and pressure can be flexibly adjusted, ensuring uniform clamping force and effectively preventing cap cracking and bottle damage.
3. Convenient product changeover and adjustment: The mold is easy to adjust and can adapt to bottles of different heights and diameters, resulting in short product changeover times.
Machine Parameters:
1.Capping speed: 2500-3800 bottles/hour (depending on the actual size of the bottles)
2. Power supply: 220V 50-60Hz
3. Overall power: 0.35KW
4. Applicable bottle caliber range (mm): 35-140mm
5. Applicable lid diameter range (mm): 5-50mm
6. Applicable product height range (mm): 38-300mm
The stable and reliable online capping process eliminates the need for manual cap pressing, ensuring a uniform and controllable cap locking effect and providing a solid guarantee for the post-capping process of the packaging production line.
