Square bottle single-side labeling machine, Side labler
 | Single side labeling machine for square bottleLabeling Speed : 15-180 cans/minute(Diameter dependent) |

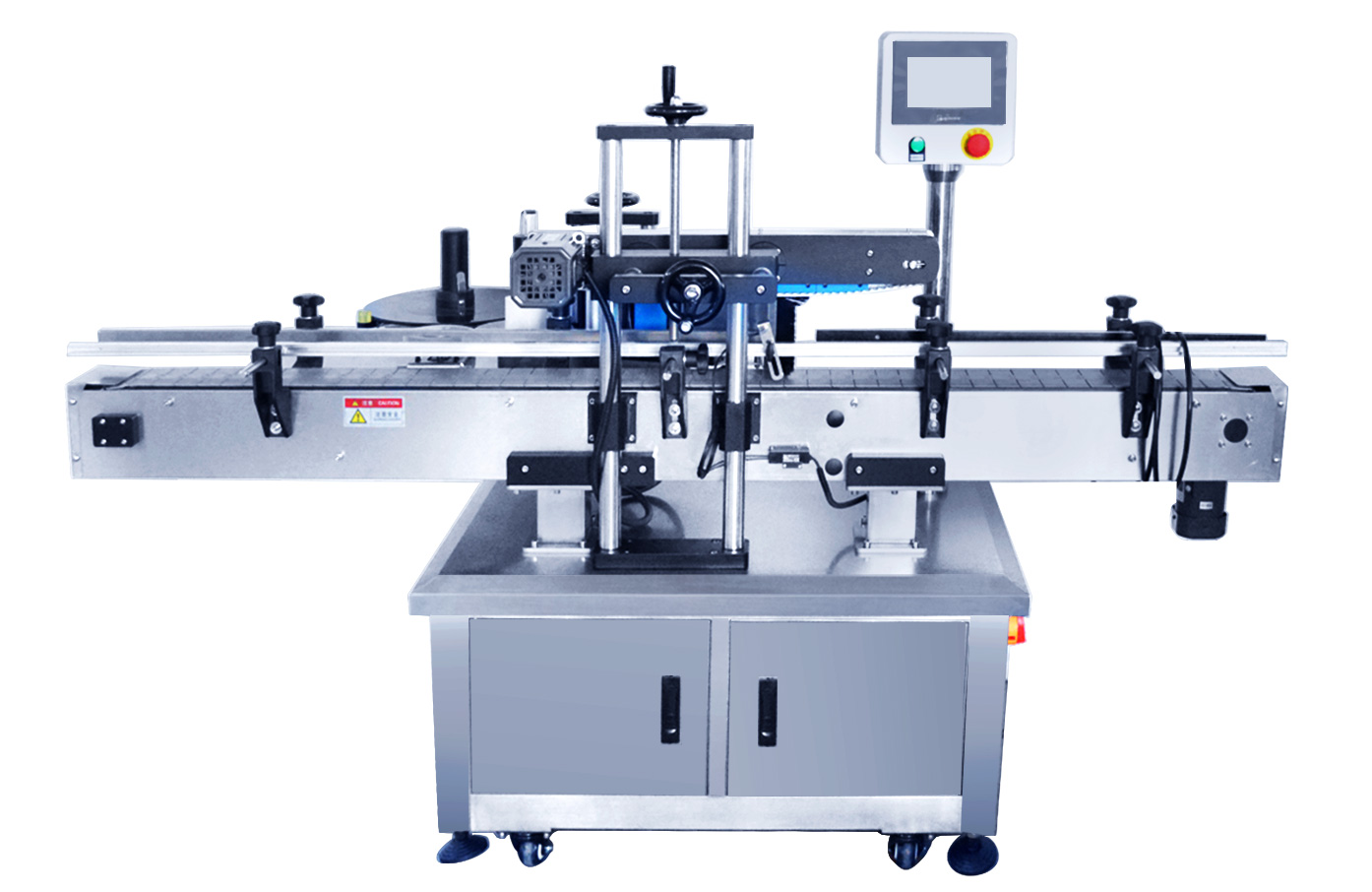

Machine Description:
This square bottle single-sided labeling machine is designed for non-circular containers such as square and flat bottles, automatically applying labels to one side. After the bottle is conveyed and positioned, the machine accurately dispenses and presses the label. It is suitable for various square plastic bottles and metal cans, and can be operated as a standalone machine or integrated into automated production lines to serve the packaging and labeling processes in the daily chemical, chemical, and food industries.
Machine Feature:
1. Specifically designed for single-sided labeling on square bottles, the conveyor mechanism, in conjunction with a lateral positioning device, ensures the labeling surface remains at the same reference point throughout the bottle's movement, resulting in precise and consistent label placement.
2. The label feeding system is equipped with a tension control device, allowing for synchronized adjustment of label dispensing and conveyor speeds. This ensures smooth label peeling and accurate adhesion, effectively preventing label skewing, wrinkling, and air bubbles.
3. Adaptable to various square bottle sizes, significantly reducing changeover time and meeting the needs of multi-variety, small-batch production.
Machine Parameters:
1. Labeling Speed：0 – 180 bottles/min (Diameter dependent)
2. Labeling Accuracy：±1 mm
3. Bottle Diameter Range：25 – 150 mm (Customizable)
4. Conveyor Height：800 mm (Customizable)
5. Power & Air Supply：220V 50Hz / 5 kg/cm³
6. Label Size (L x W)：10‑300mm x 10‑150mm (Customizable)
7. Machine Dimensions (LxWxH)：2200 x 800 x 1580 mm
8. Machine Weight：~200 kg
Labeling accuracy directly impacts the quality of product packaging and brand image. This equipment is specifically optimized for single-sided labeling of square bottles, ensuring stable conveying and positioning, and precise label application, guaranteeing that each label is neatly positioned and uniformly placed.
