Linear double head screw capping machine, Round bottle servo control capper equipment
 | Double double head capper machineCapping Speed : 30-45 cans/minute |
Machine Description：

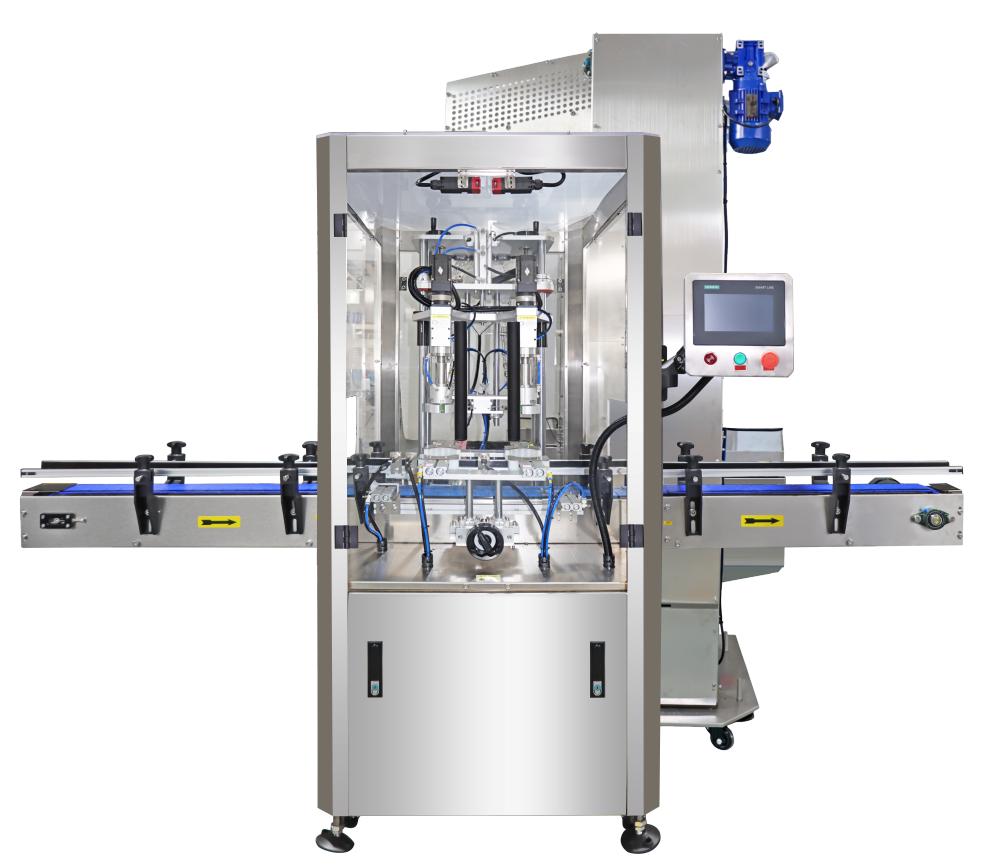

This inline dual-head capping machine operates along a straight conveyor system to complete bottle capping tasks. Equipped with a protective safety enclosure, the dual capping heads work synchronously to continuously tighten caps in sequence with the production line flow. Designed for a wide range of round containers, the machine offers flexible integration into various production line layouts, making it ideal for continuous capping operations in the daily chemical, food, and related industries.
Machine Feature:
1. Dual-station synchronous capping, with parallel operation on two lines, improves overall processing speed. Capping torque is controllable, ensuring uniform tightening of each cap.
2. The entire machine is equipped with a protective cover to isolate the capping area, preventing debris and dust from spilling out, improving workshop conditions, and enhancing equipment safety.
3. The linear layout offers strong compatibility, requiring minimal modifications to production lines. Changing to different cap and bottle sizes is simple, facilitating production switching for multiple product specifications.
Machine Parameters:
1. Capping Configuration：Double head servo gripping and screw capping
2. Capping Method：Servo torque‑limited screw gripping capping
3. Capping Speed：1800‑3000 bottles per hour
4. Cap Handling Method：Pneumatic gripper cap feeding
5. Bottle Diameter：φ30‑φ125mm
6. Bottle Height：30‑220mm
7. Machine Material：304 stainless steel and aluminum profile
While ensuring capping quality and production speed, it also takes into account on-site protection needs, practicality and production safety, providing a reliable equipment option for the capping process on the production line.
