High-Speed Four-Wheel Capping Machine for Automatic Bottle and Jar Packaging

A cap may be small, but the capping process has a direct impact on the quality of the finished package. If the cap is too loose, too tight, tilted, or inconsistently tightened, it can affect sealing performance and product presentation.

For high-volume packaging operations, four-wheel capping technology provides a practical way to achieve fast and consistent cap tightening.

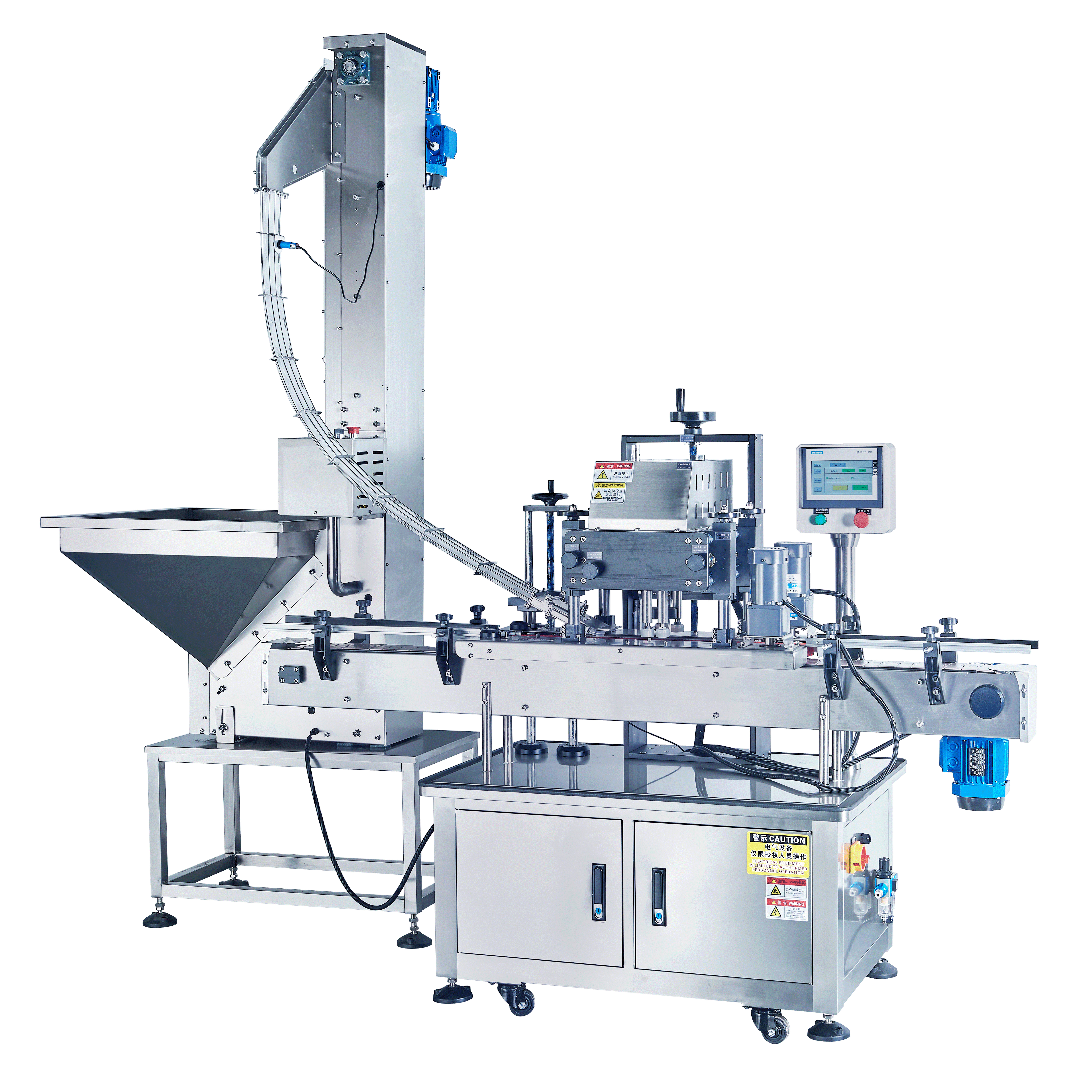

Guangzhou Full Harvest Industries Co., Ltd. manufactures automated packaging machinery and provides capping solutions for bottles and jars in different industries. Our High-Speed Four-Wheel Capping Machine uses four rotating wheels to grip and tighten caps continuously as containers pass through the capping station.

Four-Wheel Friction Capping in Action

Unlike machines that tighten caps with a single capping head, the four-wheel system uses multiple rotating wheels positioned around the cap.

As the container moves forward, the wheels contact the cap from different directions and progressively tighten it to the required level.

The basic process is:

Container Infeed → Cap Positioning → Four-Wheel Tightening → Cap Inspection → Outfeed

This continuous tightening method is well suited to production lines where large quantities of bottles or jars need to be capped at high speed.

Built for High-Speed Packaging

The biggest advantage of this type of machine is its ability to combine continuous operation with efficient cap tightening.

Once the bottle and cap enter the capping section, the four wheels work together while the container moves through the machine. This allows capping to be performed without stopping every container for an individual tightening cycle.

For manufacturers with demanding production targets, this can help increase throughput and reduce the bottleneck that may occur at the capping stage.

Suitable for Different Products

The four-wheel capping machine can be used across a broad range of packaging applications, provided the bottle and cap specifications are compatible with the machine.

Typical products include:

• Sauces and condiments
• Beverages
• Juice and liquid food products
• Cooking oils
• Honey and syrup
• Cosmetics
• Detergents
• Pharmaceutical and healthcare products
• Daily chemical products

It can be used with different packaging lines for plastic bottles, glass bottles, and other suitable containers.

Adjusted for Different Packaging Formats

A production line may need to handle more than one bottle size or cap specification. The capping machine can therefore be adjusted according to the actual packaging format.

Key factors include:

Bottle Height & Diameter – Determines the appropriate machine setup and conveying position.

Cap Dimensions – The capping wheels need to contact the cap correctly to achieve stable tightening.

Cap Material & Structure – Different cap designs may require different adjustment parameters.

Required Production Speed – Machine speed can be matched to the capacity of the filling and downstream equipment.

Proper adjustment helps maintain stable contact between the four capping wheels and the cap throughout operation.

Where Does It Fit in an Automated Line?

The four-wheel capping machine is generally installed after the filling process and before labeling or other finishing operations.

A complete production line could be arranged as:

Bottle Feeding → Filling → Cap Feeding → Four-Wheel Capping → Induction Foil Sealing → Labeling → Finished Product Collection

This configuration allows the capping process to become part of a continuous automated workflow rather than a separate manual operation.

Why Choose Four-Wheel Capping?

For factories looking for a high-speed automatic capping solution, the four-wheel configuration offers a useful combination of speed, continuous tightening, and flexible adjustment.

It is especially suitable when production requires:

High Output – Designed for continuous high-speed capping operations.

Stable Cap Tightening – Four wheels work together to tighten caps progressively.

Consistent Production – Automated capping reduces variation caused by manual operation.

Flexible Integration – Can be connected with filling, foil sealing, labeling, and other packaging equipment.

Space-Efficient Line Design – The machine can be incorporated into a continuous conveyor-based production line.

A Capping Solution for High-Volume Production

As a packaging equipment manufacturer, Guangzhou Full Harvest Industries Co., Ltd. provides machinery covering multiple stages of the packaging process, including filling, capping, induction sealing, can sealing, labeling, bottle handling, and complete packaging line solutions.

Our High-Speed Four-Wheel Capping Machine is designed for manufacturers that need to move beyond manual or low-speed cap tightening and achieve a more continuous production process.

With the right machine configuration, the capping stage can keep pace with the filling and labeling equipment around it—helping create a faster, smoother, and more reliable automated packaging line.
