Fully automatic single head screw capper mahchine, Servo control gripping and screw capping machine
 | Automatic single-head screw capping machineCapping Speed : 15 – 20 cans/min |

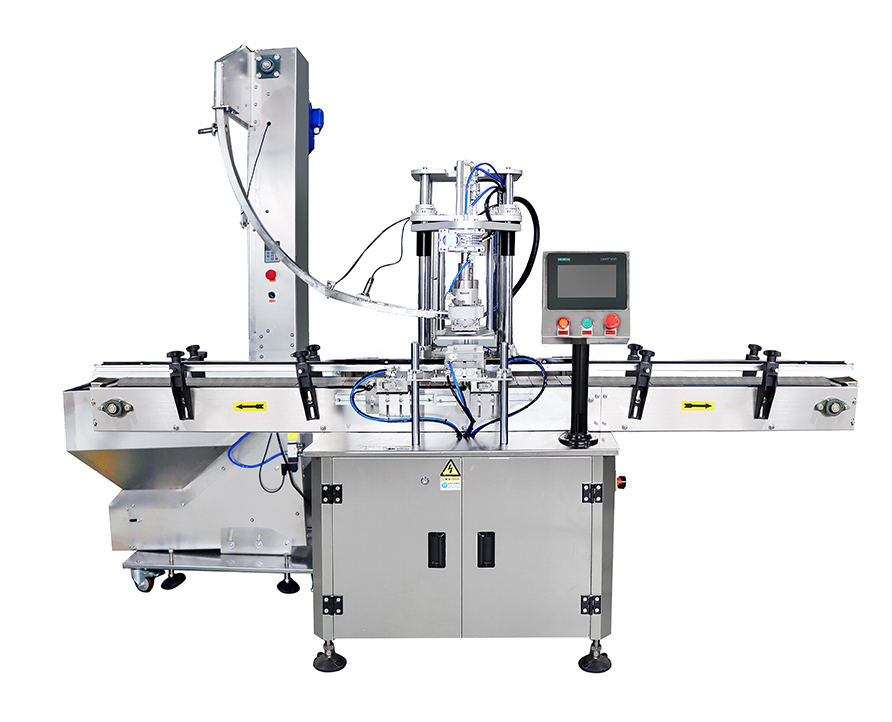

Machine Description:
The single head capping machine is compatible with various threaded bottle caps and can automatically complete the entire process of cap feeding and capping. The equipment uses servo drive, with precisely adjustable speed and torque, ensuring a tight seal while effectively protecting the bottle cap from damage. It is widely used in the beverage, condiment, daily chemical, and pharmaceutical industries, and can operate independently or be flexibly integrated into a complete automated packaging production line.
Machine Feature:
1、Precision Servo Torque Control: Utilizes a servo motor in torque feedback mode to apply the perfect tightening force, ensuring secure seals while preventing cap breakage or thread damage.
2、Fully Automated Operation: Integrates automatic cap feeding (via vibratory bowl or elevator), bottle clamping, and precise capping into one seamless process, significantly reducing labor and increasing throughput.
3、Exceptional Versatility: Easily adapts to different bottle shapes and cap sizes by changing the bottle gripper and chuck head, making it perfect for production lines with multiple products.
Machine Parameters:
1. Lower cover form: air claw grasp cover the lower cover
2. Total power: 1KW
3. Power supply: AC220V 50 / 60Hz
4. Working air pressure: 0.5-0.6MPA
5. Gas consumption (compressed air): 130 L/min
6. Height of the conveyor belt: 850mm
7. Main material of the equipment: 304 # stainless steel
The GZFharvest fully automatic capping machine integrates automatic cap feeding, cap placement, and capping, suitable for sealing various round bottles with threaded caps in the food, beverage, daily chemical, and pharmaceutical industries. The equipment is equipped with an independent torque control system, allowing for precise torque setting via a human-machine interface, ensuring consistent capping quality and reliable sealing. The entire machine utilizes PLC centralized control, making changeover operations simple and efficient.
